Hook-Up Cables /

Ferrite Coated Hook-Up Cables

Ferrite coated stranded conductors are the basic components of the low pass cables. These conductors are frequently used separately hook up wires.

These are manufactured in our China facility. In addition to these ferrite coated hook up cables, we also produce ferrite coated coax cables.

Typical Use:

For cabling electronics device and control cabinets in environments with significant electromagnetic interference.

Available types:

0.25mm2 and 1.0mm2
(Color Black)
w

Upon request:

Other cross section and colors are available upon request.

Typical Use:

For cabling electronics device and control cabinets in environments with significant electromagnetic interference.

Available types:

0.25mm2 and 1.0mm2
(Color Black)
w

Upon request:

Other cross section and colors are available upon request.
Technical Data
LIMY Weight (kg/km) Outer Diameter (mm) R Ω km Part Number
0.25 mm2 12 1.5 80.00 LIMY 0.25
0.5 mm2 17 2.9 40.10 LIMY 0.5
1.0 mm2 24 3.3 20.00 LIMY 1.0

PDF versions of the specifications:

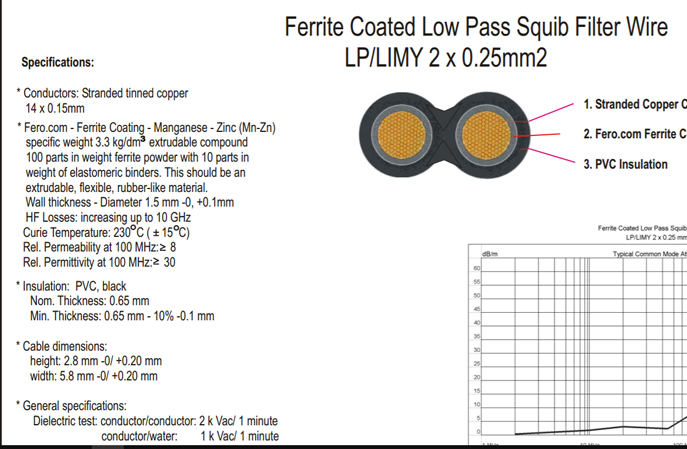

LP/LIMY 2x0.25mm2

see pdf

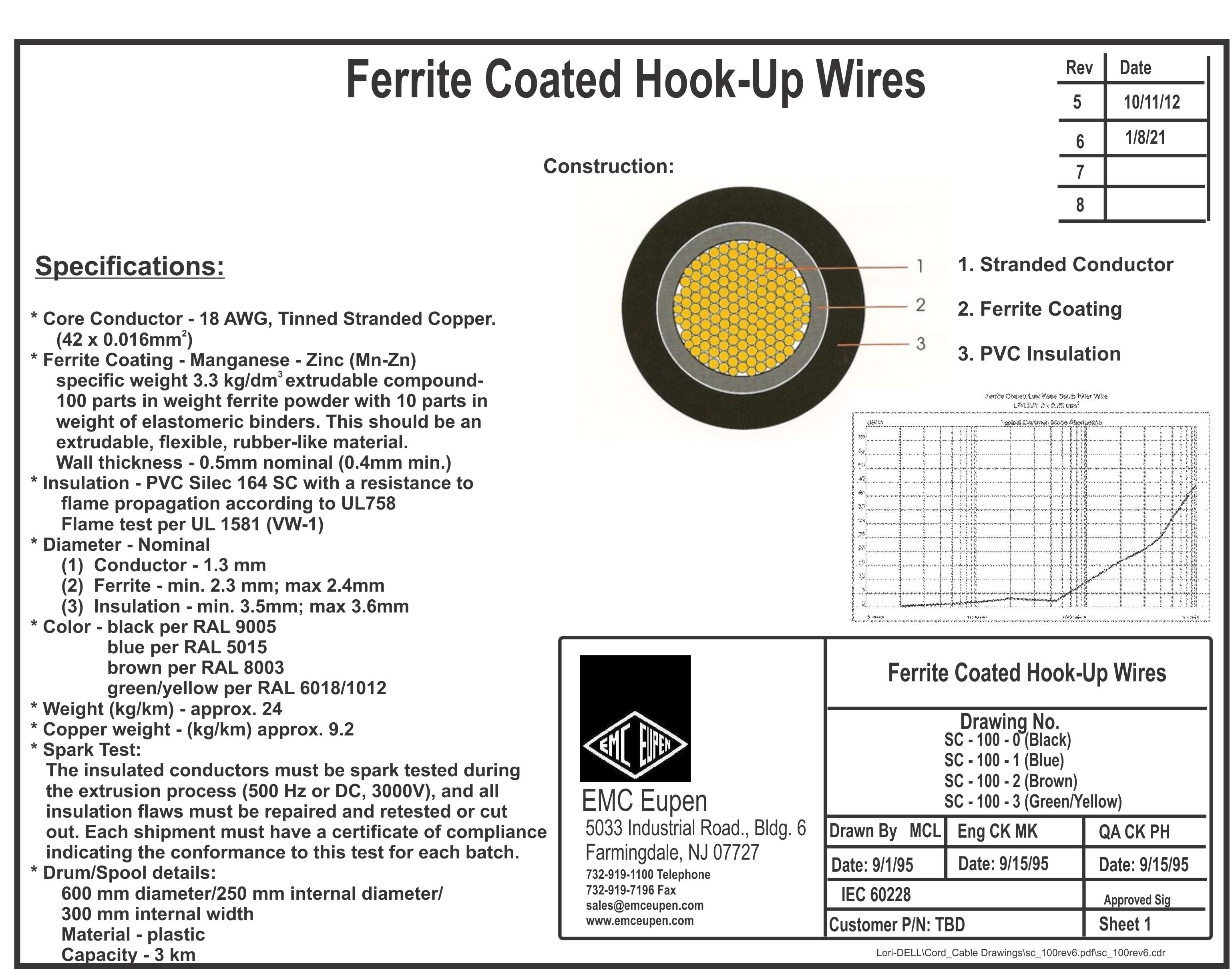

Hook-Up Wires

see pdf
