Power Cords | European Schuko

The following is a summary chart of the ES series cord sets (CE EURO) offered as standard product. The difference in the configuration is the inclusion or omission of the X and Y capacitors as well as the ferrite coating (FerroCom) on the conductors. The attenuation (insertion loss) is maximized when all components are included.

Standard ES 100 Series (The Economy Series)

Drawing No.	Style No.	Cable Type	I (AMPS)	L MH	CX UF	CY NF	Remarks - Comments

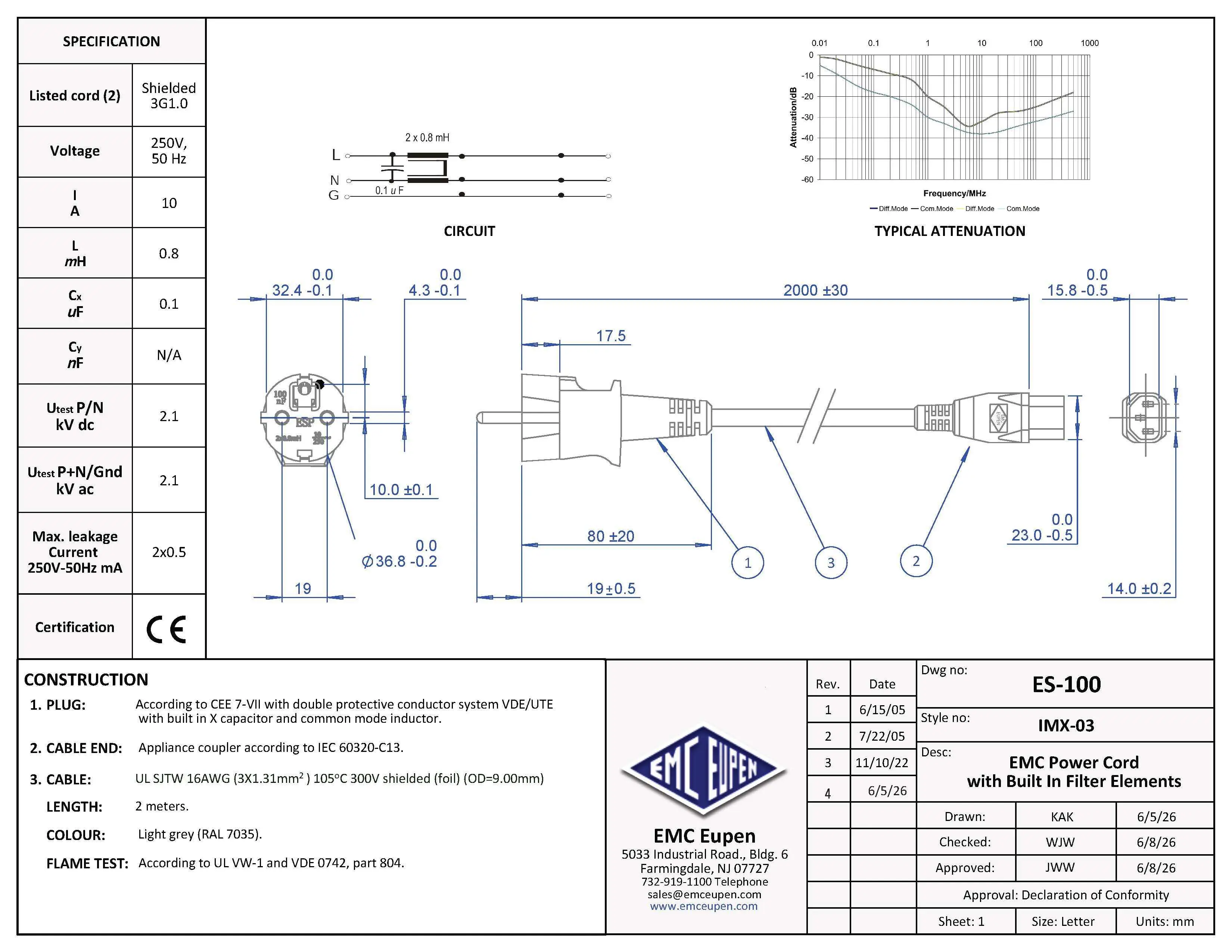

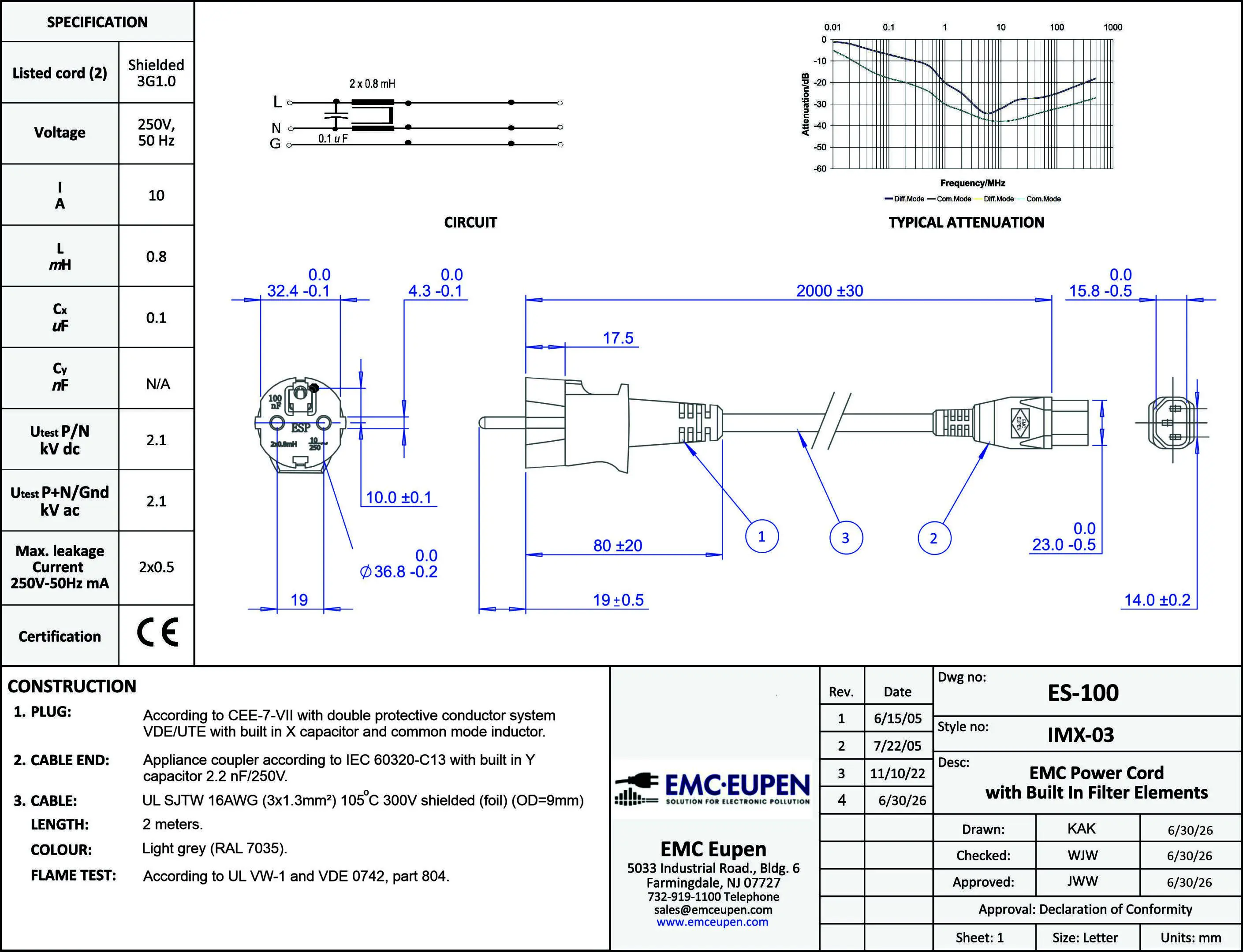

ES 100	IMX 03	Shielded Only	10	.8	.1	-	Low Leakage (No Y cap)

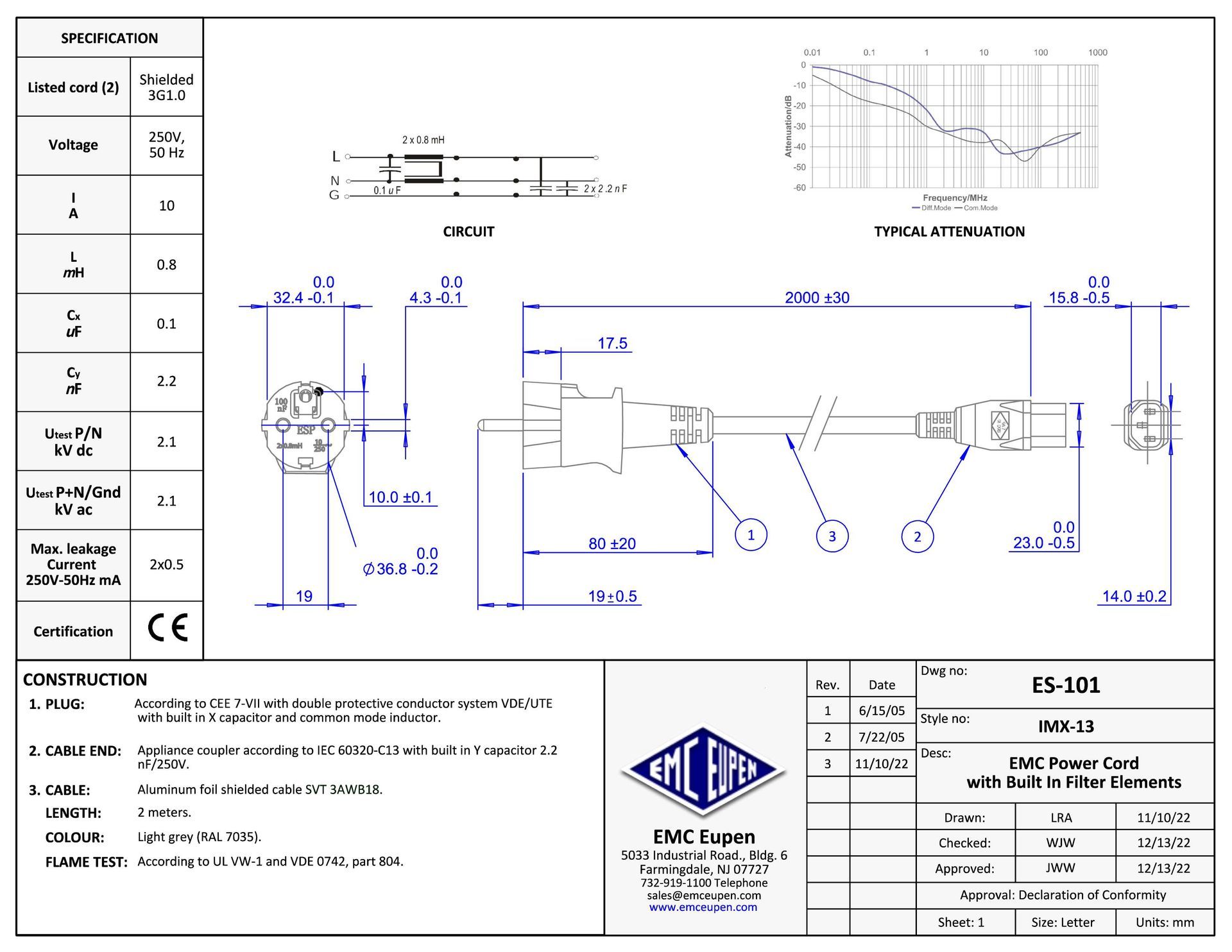

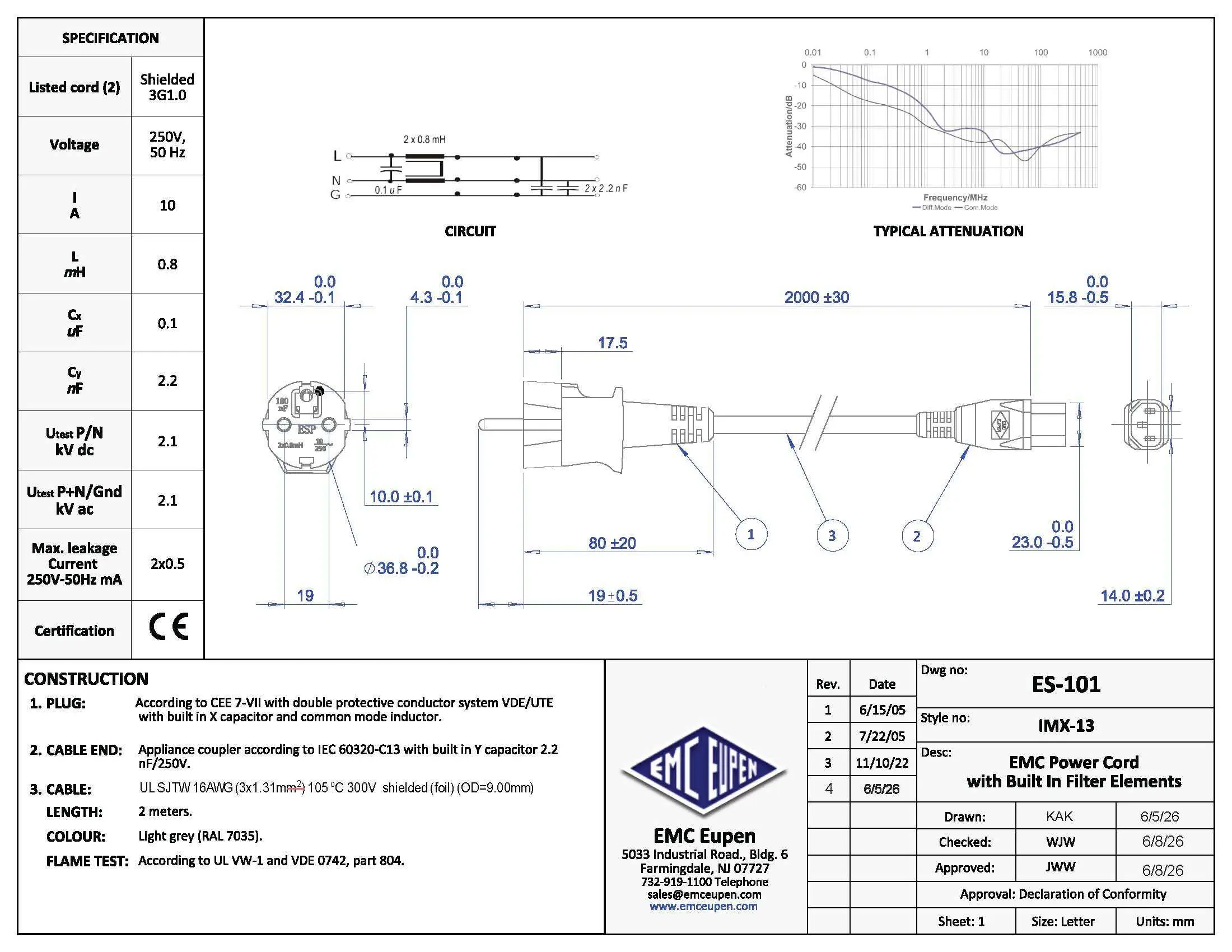

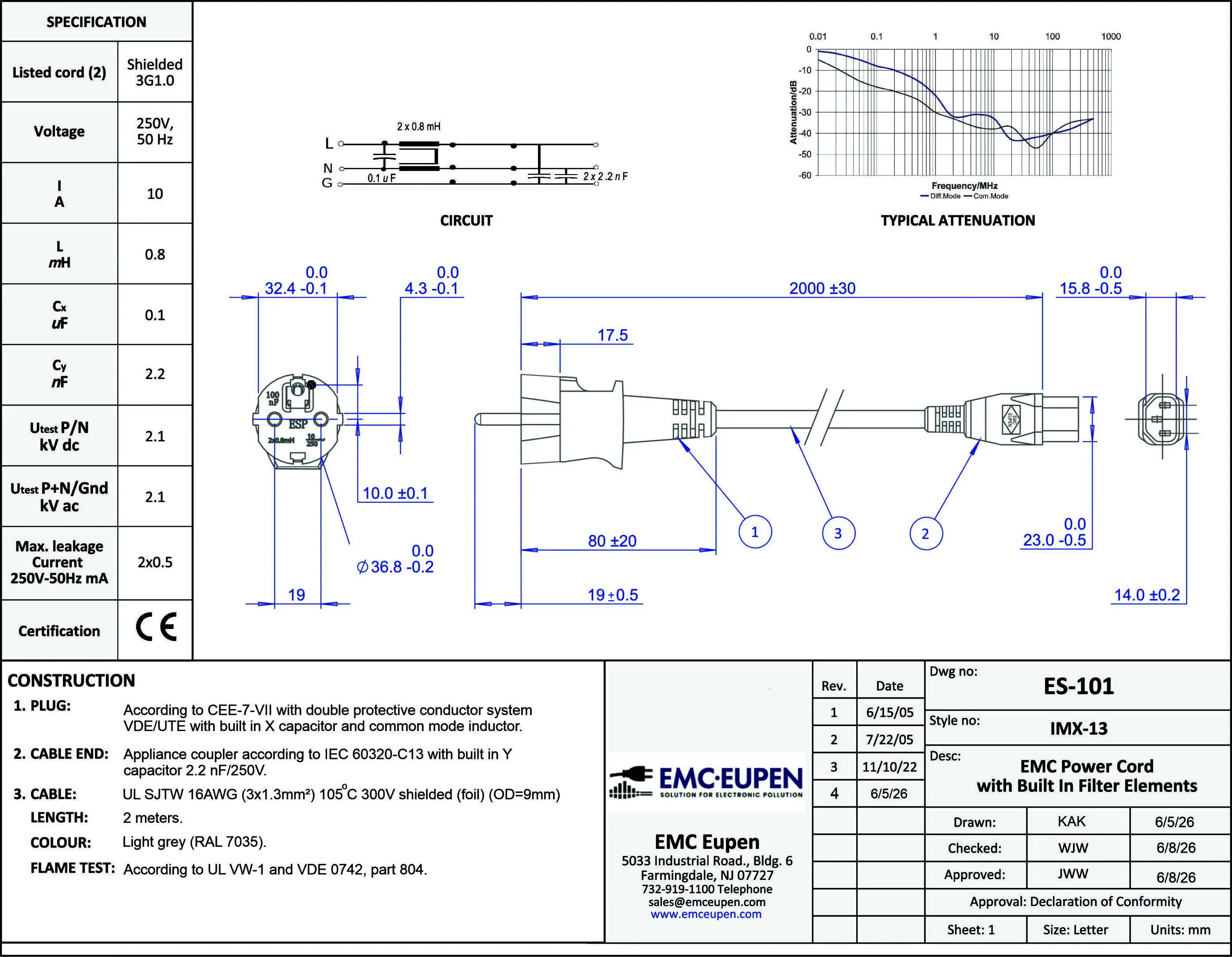

ES 101	IMX 13	Shielded Only	10	.8	.1	2 x 2.2	Uses all passive components (except no FerroCom)

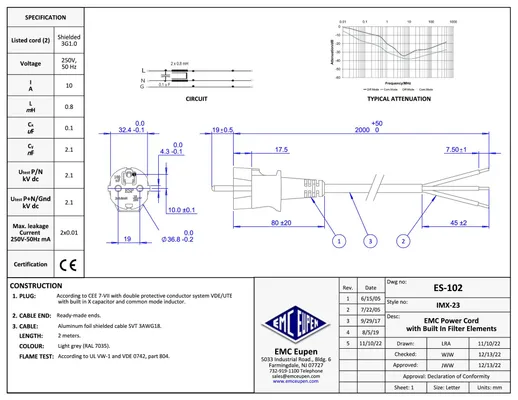

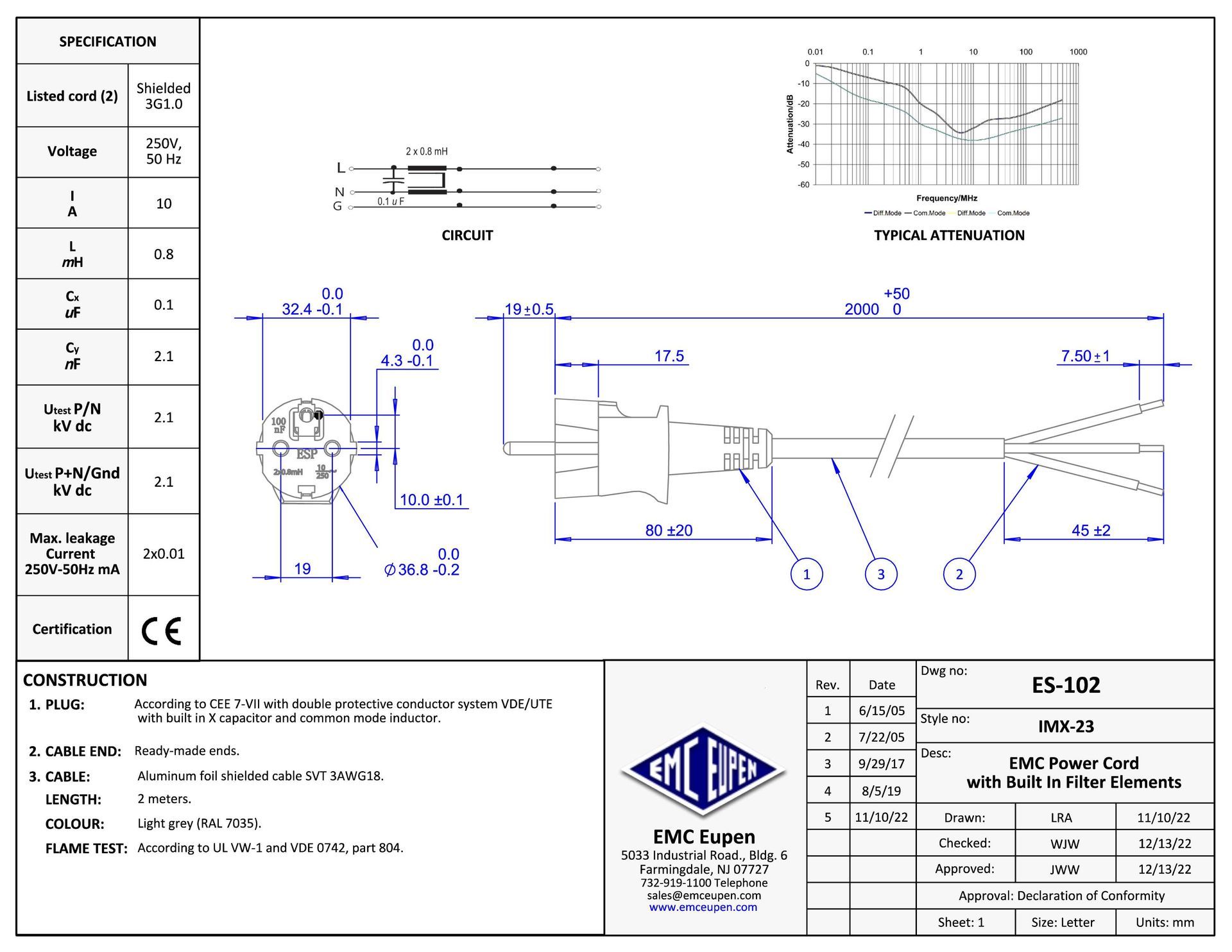

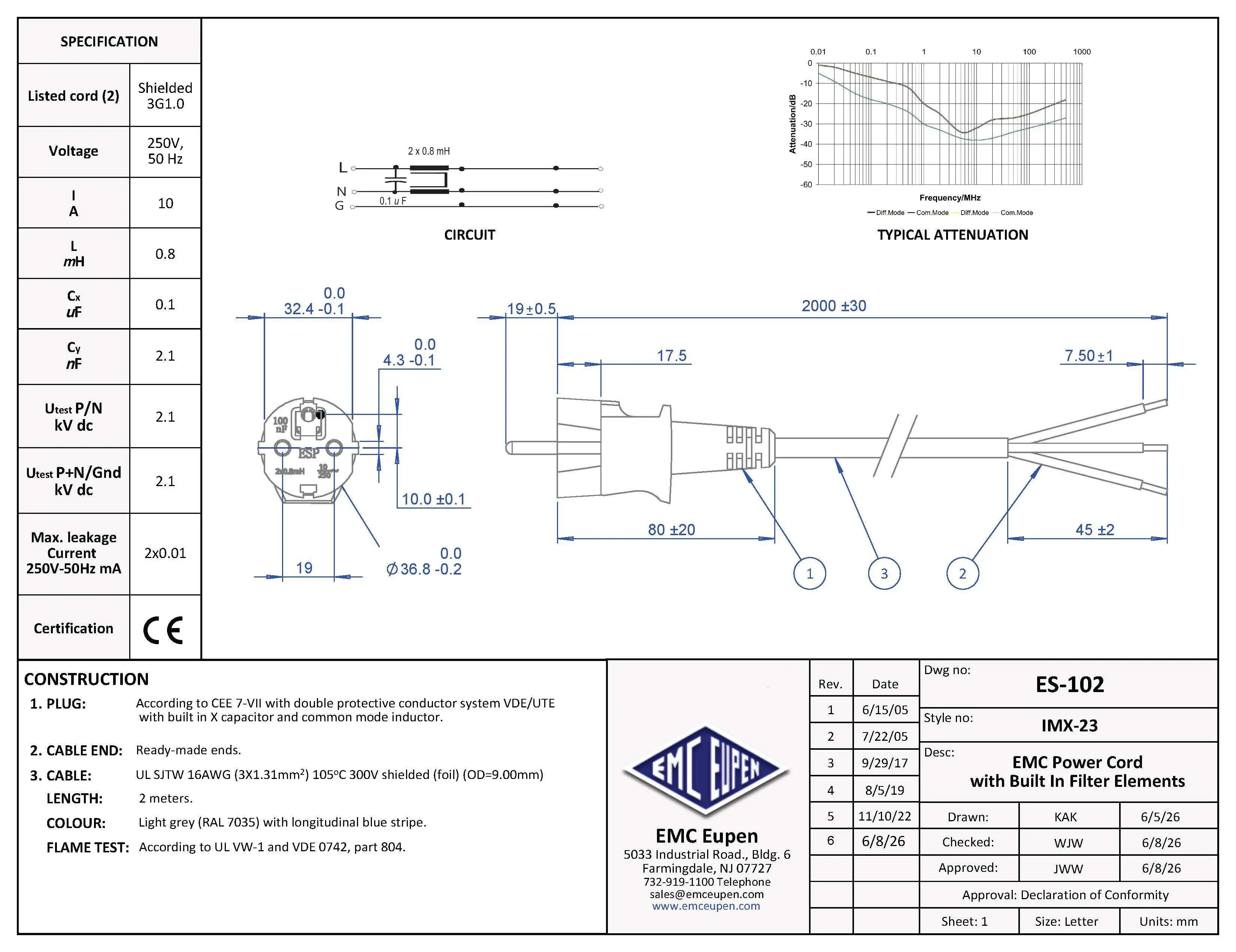

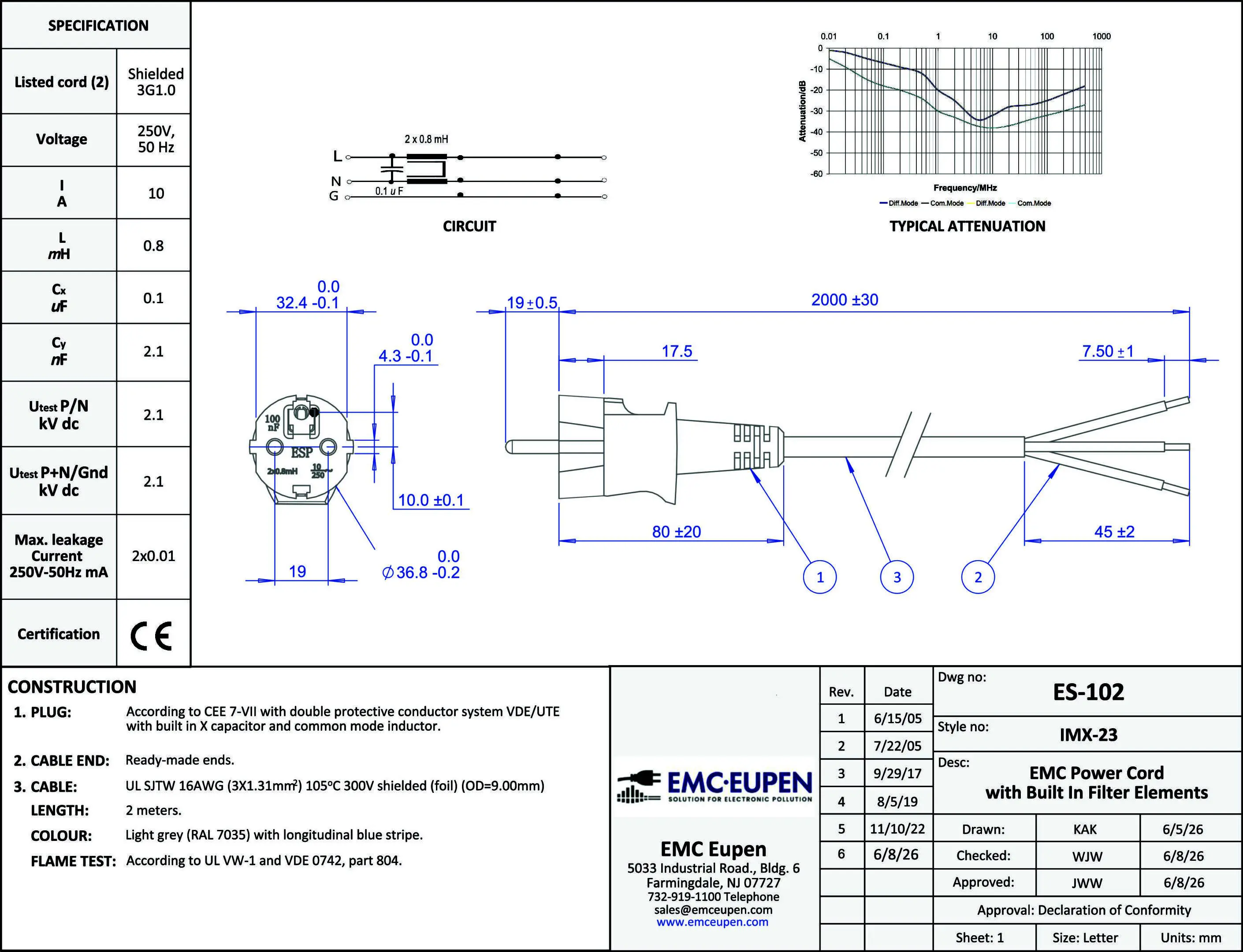

ES 102	IMX 23	Shielded Only	10	.8	.1	-	Ready made ends (No Y cap)

PDF Version to

View or Print:

A black and white drawing of a building with a ce sticker on it

A blue and white drawing of a mechanical device

High Performance ES 200 Series

Drawing No.	Style No.	Cable Type	I (AMPS)	L MH	CX UF	CY NF	Remarks - Comments

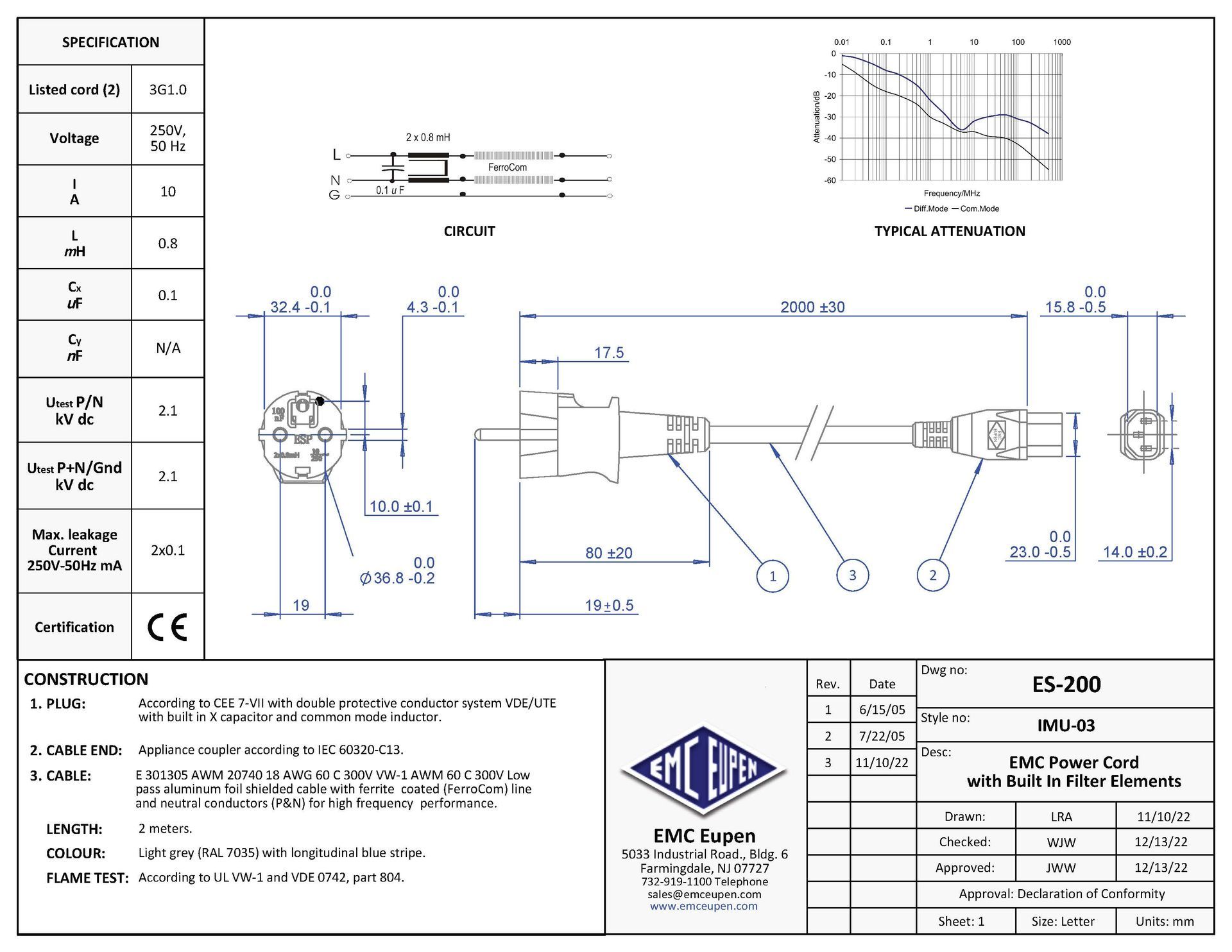

ES 200	IMU 03	Shielded with FerroCom	10	.8	.1	-	Low Leakage (No Y cap)

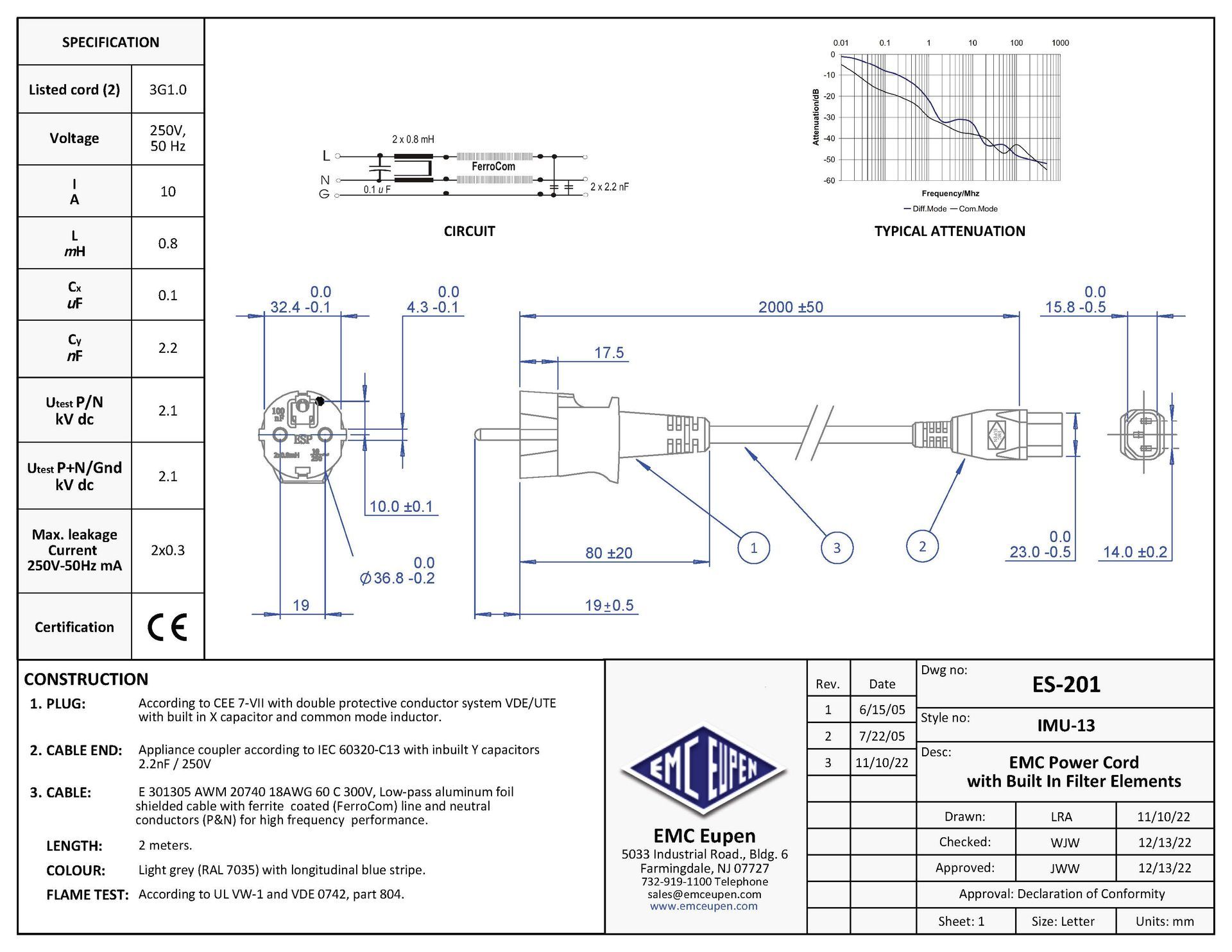

ES 201	IMU 13	Shielded with FerroCom	10	.8	.1	2 x 2.2	MAX Performance

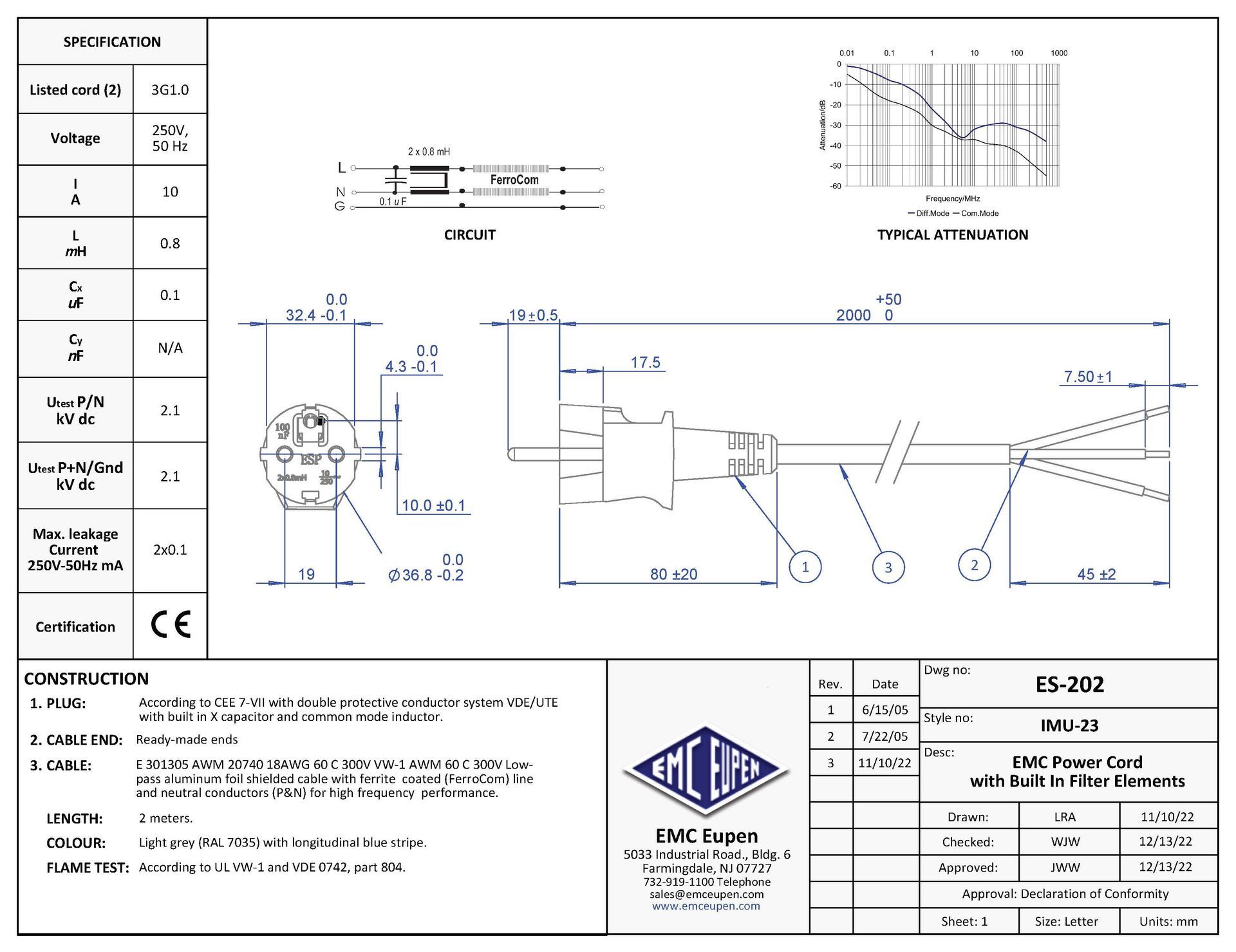

ES 202	IMU 23	Shielded with FerroCom	10	.8	.1	-	Ready made ends (No Y cap)
