Ferrite Coated Hook-Up Cables

Hook-Up Cables | Ferrite Coated Hook-Up Cables

Ferrite coated stranded conductors are the basic components of the low pass cables. These conductors are frequently used separately to hook up wires.


These are manufactured in our China facility. In addition to these ferrite coated hook up cables, we also produce ferrite coated coax cables.

A black and white drawing of a wrench and screwdriver on a white background.

Typical Use

For cabling electronics device and control cabinets in environments with significant electromagnetic interference.

A white background with a black icon on it.

Available Types:

0.25mm2 and 1.0mm2

(Color Black)

A black and white icon of a speech bubble on a white background.

Upon Request

Other cross section and colors are available upon request.

Technical Data

LIMY Weight (KG/KM) Outer Diameter (MM) R Ω KM Part Number
0.25 mm2 12 1.5 80.00 LIMY 0.25
0.5 mm2 17 2.9 40.10 LIMY 0.5
1.0 mm2 24 3.3 20.00 LIMY 1.0

PDF Versions of the Specifications

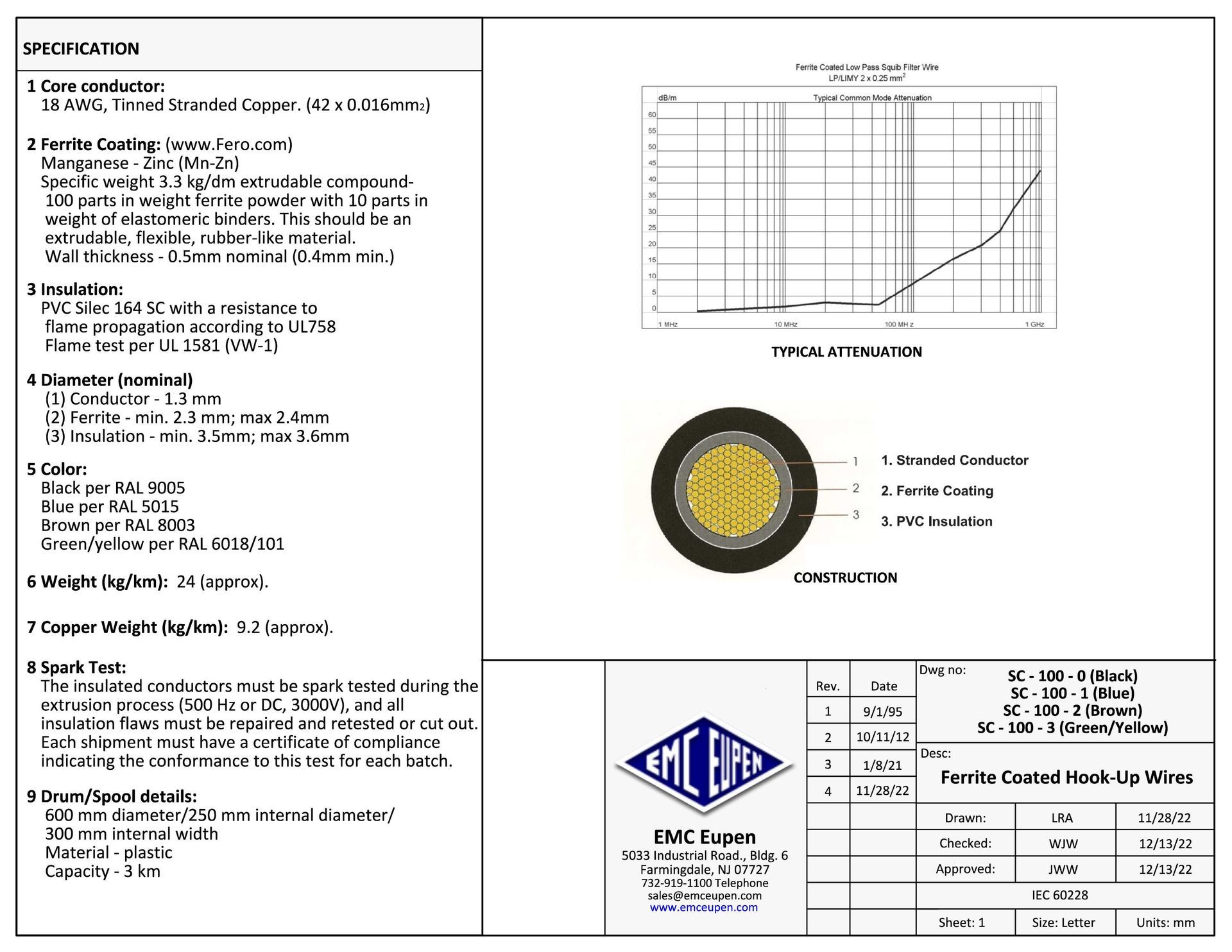

A white sheet of paper with a diagram of a cable on it.

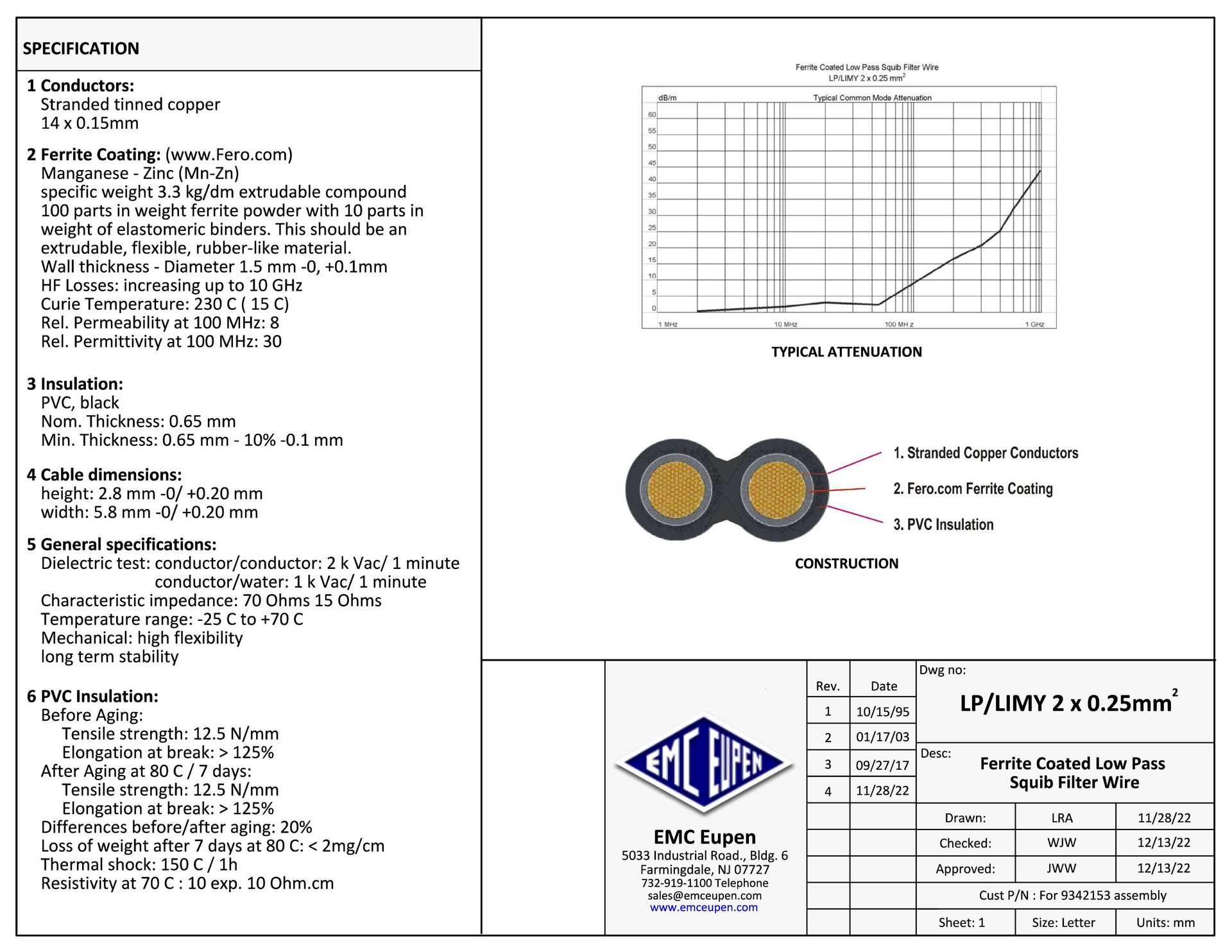

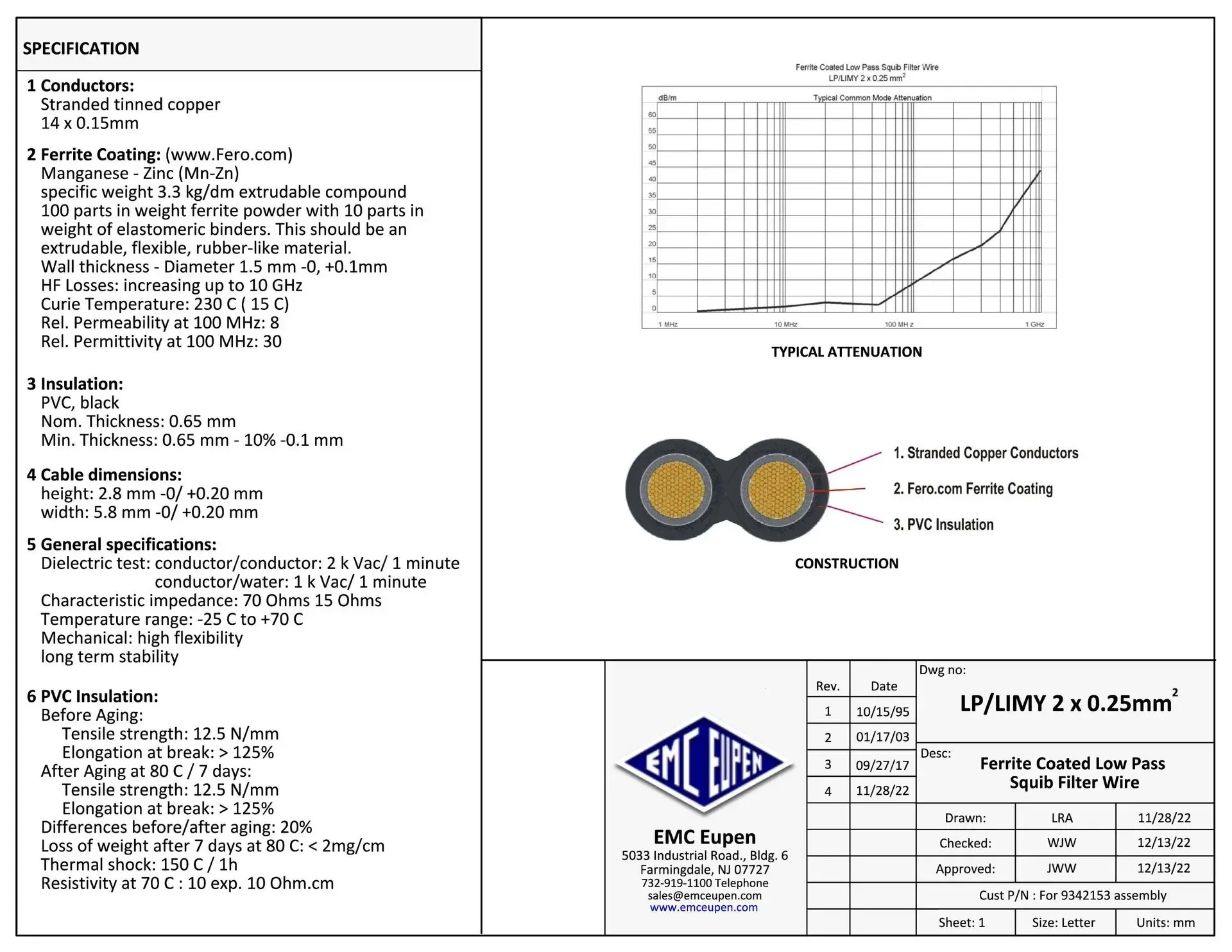

A sheet of paper with a diagram of a cable on it.
